Window

Description

The Window object is implemented in xscale.window, which uses the decorator xarray.register_dataarray_accessor to associate a window to a DataArray. The Window object extends xarray.DataArray.rolling to multi-dimensional arrays and benefits from the power of dask.array for multi-processing computation. As an example, a 3-dimensional testing DataArray is loaded from the generator:

In [1]: import xscale.signal.generator as xgen

In [2]: foo = xgen.example_xyt()

In [3]: foo
Out[3]:
<xarray.DataArray 'example_xyt' (time: 100, y: 128, x: 128)>
dask.array<shape=(100, 128, 128), dtype=float64, chunksize=(50, 70, 70)>
Coordinates:
  * time     (time) datetime64[ns] 2011-01-01 2011-01-02 2011-01-03 ...
  * y        (y) float64 0.0 0.04947 0.09895 0.1484 0.1979 0.2474 0.2968 ...
  * x        (x) float64 0.0 0.04947 0.09895 0.1484 0.1979 0.2474 0.2968 ...

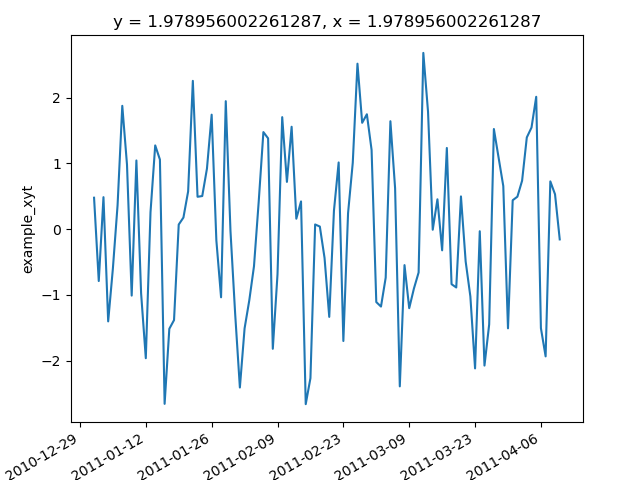

In [4]: foo.isel(y=40, x=40).plot()
Out[4]: [<matplotlib.lines.Line2D at 0x7fef4f56dbd0>]

In [5]: plt.show()

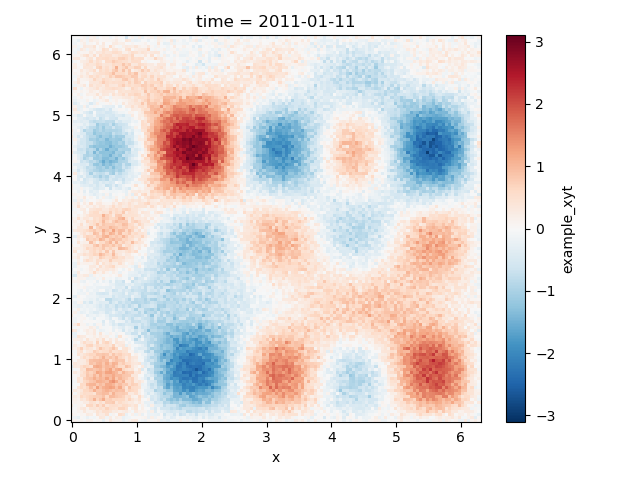

In [6]: foo.isel(time=10).plot()
Out[6]: <matplotlib.collections.QuadMesh at 0x7fef45974290>

In [7]: plt.show()

The Window object may be simply linked to the latter DataArray using the attribute .window:

In [8]: import xscale

In [9]: wt = foo.window

Defining

The xscale.Window.set() method takes optionally six parameters:

• n: the size of the window
• dim: dimension names for each axis (e.g., ('x', 'y', 'z')).
• dx: the sampling along the dimensions
• cutoff: the cutoff of the window, used for defining window for linear filtering.
• window: the name of the window used, and other window parameters passed through a tuple
• chunk: set or modify the chunks of the dask.array object associated to the xarray.DataArray

Note

There is no need to define dim if the other parameters are passed as dictionaries.

In [10]: wt.set()

Once a Window is set, one can check the status of the Window usìng

In [11]: print(wt)
Window [order->{'y': 128, 'x': 128, 'time': 100}, cutoff->{'y': None, 'x': None, 'time': None}, dx->{'y': 0.049473900056532176, 'x': 0.049473900056532176, 'time': 86400.0}, window->{'y': 'boxcar', 'x': 'boxcar', 'time': 'boxcar'}]

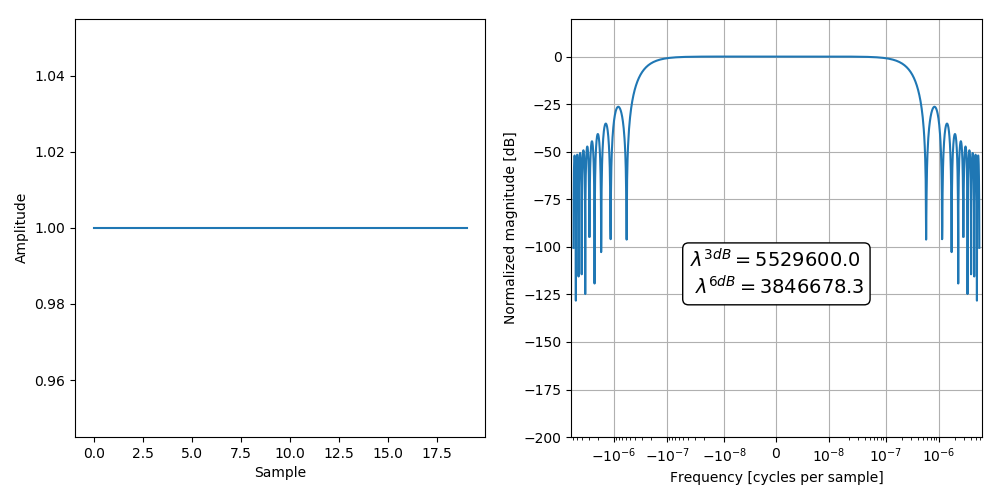

If the cutoff parameter is not defined the scipy.signal.get_window() is used to build the window along each dimensions passed through the other parameters.

In [12]: wt.set(n=20, dim='time', window='boxcar')

In [13]: wt.plot()

In [14]: plt.show()

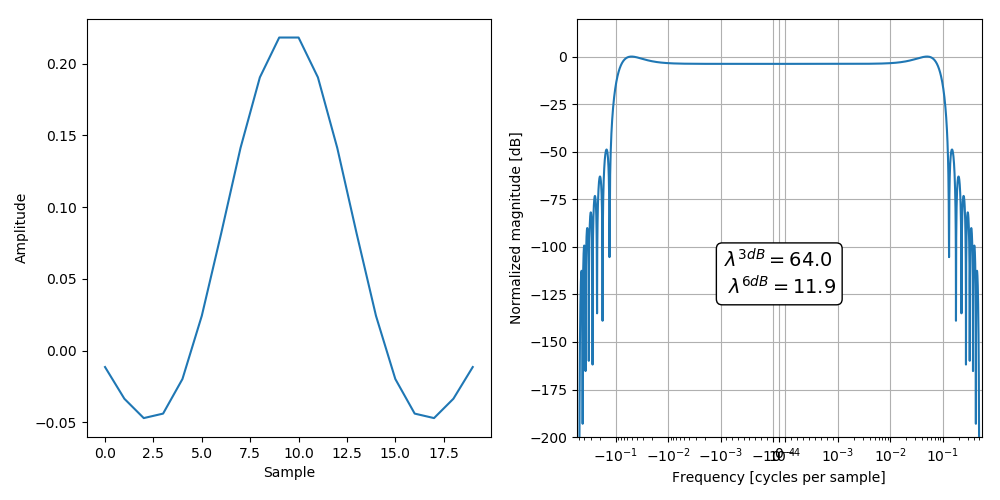

If the cutoff parameter is defined, the scipy.signal.get_window() is used to generate a Finite Impulse Response filter based on the cutoff and in respect of the window properties:

In [15]: cutoff_10d = 10 # A 10-day cutoff

In [16]: dx_1d = 1 # Define the sampling period (one day)

In [17]: wt.set(n=20, dim='time', cutoff=cutoff_10d, dx=dx_1d, window='boxcar')

In [18]: wt.plot()

In [19]: plt.show()

Note

Every time one uses the xscale.Window.set() method, all the window parameters are automatically reset.

There are several default options that allow a flexible use of Window. By

default, if no n argument is passed, the total length fo the corresponding dimensions are taken. This latter option is useful to taper the entire data along one dimension with a window.

Plotting

Plotting the window is useful to check its physical and spectral properties. For 1-dimensional and 2-dimensional windows, the plot function can be used to display the weight distribution as well as the spectral response of the window. The cutoff periods for -3 dB and -6 dB damping and are very useful to assess the selectivity of the window.

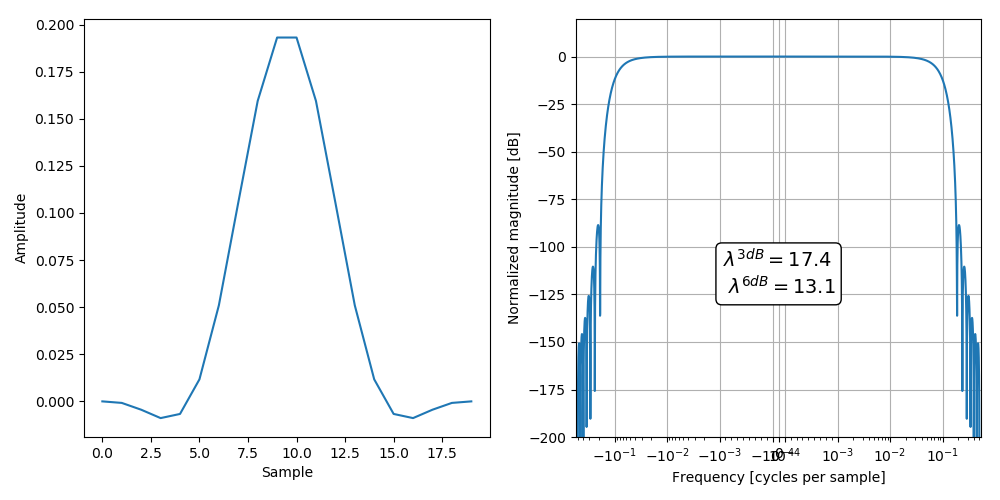

For one-dimensional window:

In [20]: wt.set(n=20, dim='time', cutoff=cutoff_10d, dx=dx_1d, window='hanning')

In [21]: wt.plot()

In [22]: plt.show()

For two-dimensional window:

In [23]: ws = foo.window

In [24]: ws.set(n={'x': 10, 'y': 15}, window={'x':'hanning', 'y':('tukey', 0.25)})

In [25]: ws.plot()

AttributeErrorTraceback (most recent call last)
<ipython-input-25-b4029634a100> in <module>()
----> 1 ws.plot()

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xscale-0.1.dev0+34.g287f044-py2.7.egg/xscale/filtering/linearfilters.pyc in plot(self)
    286 			_plot1d_window(win_array, win_spectrum_norm)
    287 		elif self.ndim == 2:
--> 288 			_plot2d_window(win_array, win_spectrum_norm)
    289 		else:
    290 			raise ValueError("This number of dimension is not supported by the "

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xscale-0.1.dev0+34.g287f044-py2.7.egg/xscale/filtering/linearfilters.pyc in _plot2d_window(win_array, win_spectrum_norm)
    341 	min_freq_y = np.extract(freq_y > 0, freq_y).min()
    342
--> 343 	cutoff_x_3db = 1. / abs(freq_x[np.argmin(np.abs(win_spectrum_x + 3))])
    344 	cutoff_x_6db = 1. / abs(freq_x[np.argmin(np.abs(win_spectrum_x + 6))])
    345 	cutoff_y_3db = 1. / abs(freq_y[np.argmin(np.abs(win_spectrum_y + 3))])

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/dataarray.pyc in __getitem__(self, key)
    472         else:
    473             # xarray-style array indexing
--> 474             return self.isel(indexers=self._item_key_to_dict(key))
    475
    476     def __setitem__(self, key, value):

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/dataarray.pyc in isel(self, indexers, drop, **indexers_kwargs)
    754         """
    755         indexers = either_dict_or_kwargs(indexers, indexers_kwargs, 'isel')
--> 756         ds = self._to_temp_dataset().isel(drop=drop, indexers=indexers)
    757         return self._from_temp_dataset(ds)
    758

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/dataset.pyc in isel(self, indexers, drop, **indexers_kwargs)
   1425         for name, var in iteritems(self._variables):
   1426             var_indexers = {k: v for k, v in indexers_list if k in var.dims}
-> 1427             new_var = var.isel(indexers=var_indexers)
   1428             if not (drop and name in var_indexers):
   1429                 variables[name] = new_var

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/variable.pyc in isel(self, indexers, drop, **indexers_kwargs)
    852             if dim in indexers:
    853                 key[i] = indexers[dim]
--> 854         return self[tuple(key)]
    855
    856     def squeeze(self, dim=None):

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/variable.pyc in __getitem__(self, key)
    618         array `x.values` directly.
    619         """
--> 620         dims, indexer, new_order = self._broadcast_indexes(key)
    621         data = as_indexable(self._data)[indexer]
    622         if new_order:

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/variable.pyc in _broadcast_indexes(self, key)
    462         key = tuple(
    463             k.data.item() if isinstance(k, Variable) and k.ndim == 0 else k
--> 464             for k in key)
    465         # Convert a 0d-array to an integer
    466         key = tuple(

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xarray/core/variable.pyc in <genexpr>((k,))
    462         key = tuple(
    463             k.data.item() if isinstance(k, Variable) and k.ndim == 0 else k
--> 464             for k in key)
    465         # Convert a 0d-array to an integer
    466         key = tuple(

AttributeError: 'Array' object has no attribute 'item'

In [26]: plt.show()

Note

The plot function will not work for windows with more than 2 dimensions.

Convolution

The designed window can be then used to filter the data using a multi-dimensional convolution by calling the xarray.DataArray.Window.convolve() method. When this method is called the dask graph is implemented by mapping and ghosting the scipy.ndimage.convolve() function.

In [27]: wt.set(n=20, dim='time', cutoff=cutoff_10d, dx=dx_1d, window='hanning')

In [28]: res = wt.convolve()

In [29]: res_valid = wt.convolve(trim=True)

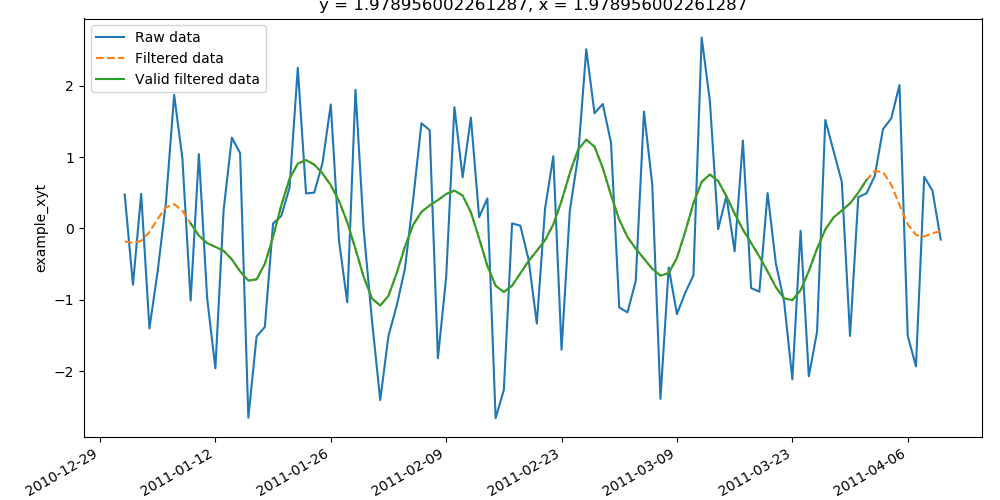

In [30]: foo.isel(y=40, x=40).plot(label="Raw data")
Out[30]: [<matplotlib.lines.Line2D at 0x7fef4556b110>]

In [31]: res.isel(y=40, x=40).plot(label="Filtered data", ls="--")
Out[31]: [<matplotlib.lines.Line2D at 0x7fef45577d90>]

In [32]: res_valid.isel(y=40, x=40).plot(label="Valid filtered data")
Out[32]: [<matplotlib.lines.Line2D at 0x7fef45578190>]

In [33]: plt.legend()
Out[33]: <matplotlib.legend.Legend at 0x7fef4554d710>

In [34]: plt.show()

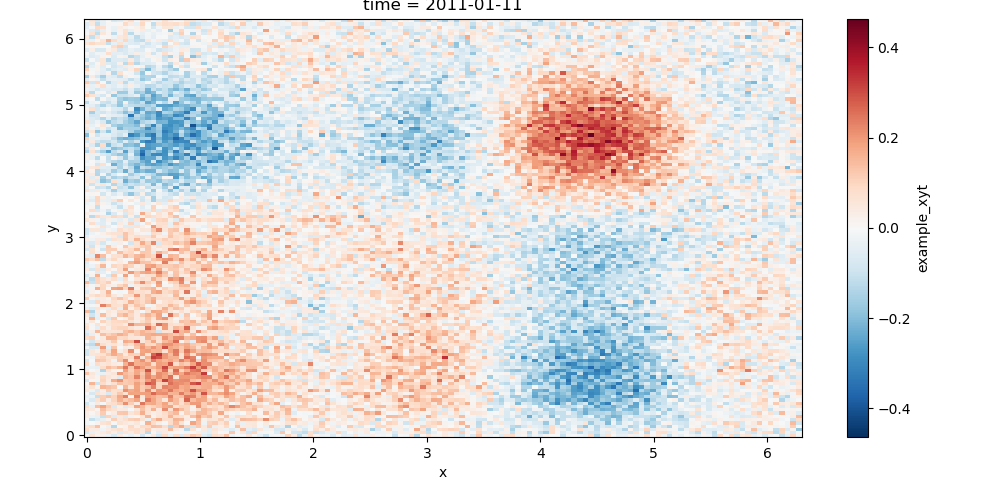

The application of the two-dimensional window ̀ ws` gives the following filtered data:

In [35]: res2 = ws.convolve()

In [36]: res2.isel(time=10).plot()
Out[36]: <matplotlib.collections.QuadMesh at 0x7fef454ec7d0>

In [37]: plt.show()

Note

If the keyword parameter compute is set to True, the computation will be performed and a progress bar will be displayed.

The xarray.DataArray.Window can be applied on dataset with missing values such as land areas for oceanographic data. In this case, the filter weights are normalized to take into account only valid data. In general, such a normalization is applied by computing the low-passed data \(Y_{LP}\):

\[Y_{LP} = \frac{W * Y}{W * M},\]

where \(Y\) is the raw data, \(W\) the window used, and \(M\) a mask that is 1 for valid data and 0 for missing values.

In [38]: import xscale.signal.generator as xgen

In [39]: foo = xgen.example_xyt(boundaries=True)

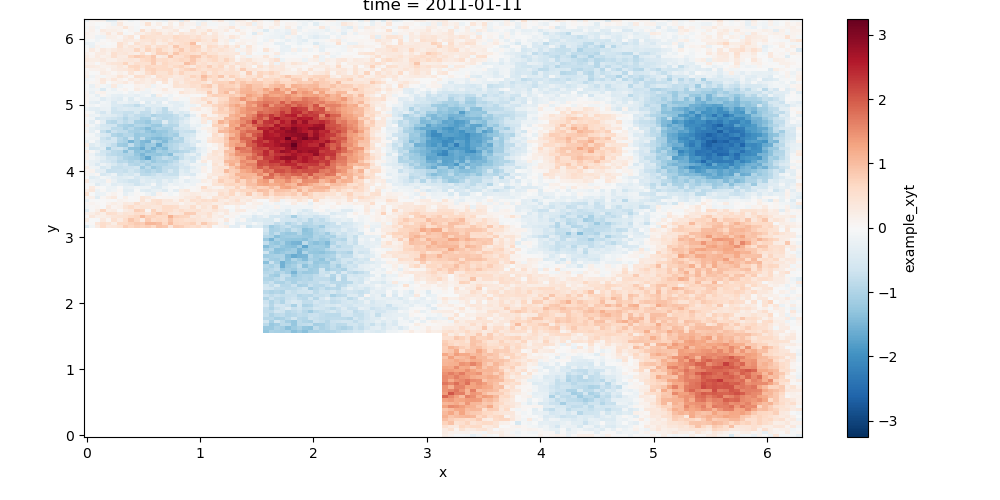

In [40]: foo.isel(time=10).plot()
Out[40]: <matplotlib.collections.QuadMesh at 0x7fef45485d50>

In [41]: plt.show()

In [42]: ws = foo.window

In [43]: ws.set(n={'x': 10, 'y': 15}, window={'x':'hanning', 'y':('tukey', 0.25)})

In [44]: weights = ws.boundary_weights(drop_dims=['time'])

TypeErrorTraceback (most recent call last)
<ipython-input-44-e12b93d2615f> in <module>()
----> 1 weights = ws.boundary_weights(drop_dims=['time'])

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/xscale-0.1.dev0+34.g287f044-py2.7.egg/xscale/filtering/linearfilters.pyc in boundary_weights(self, mode, mask, drop_dims, compute)
    225 		if drop_dims:
    226 			new_coeffs = da.squeeze(coeffs, axis=[self.obj.get_axis_num(di)
--> 227 		                                          for di in drop_dims])
    228 		else:
    229 			new_coeffs = coeffs

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/dask/array/routines.pyc in squeeze(a, axis)
    933         axis = (axis,)
    934
--> 935     if any(a.shape[i] != 1 for i in axis):
    936         raise ValueError("cannot squeeze axis with size other than one")
    937

/home/docs/checkouts/readthedocs.org/user_builds/xscale/conda/master/lib/python2.7/site-packages/dask/array/routines.pyc in <genexpr>((i,))
    933         axis = (axis,)
    934
--> 935     if any(a.shape[i] != 1 for i in axis):
    936         raise ValueError("cannot squeeze axis with size other than one")
    937

TypeError: tuple indices must be integers, not list

In [45]: weights.plot(vmin=0.8, vmax=1.)

NameErrorTraceback (most recent call last)
<ipython-input-45-f62f4a52776d> in <module>()
----> 1 weights.plot(vmin=0.8, vmax=1.)

NameError: name 'weights' is not defined

In [46]: plt.show()

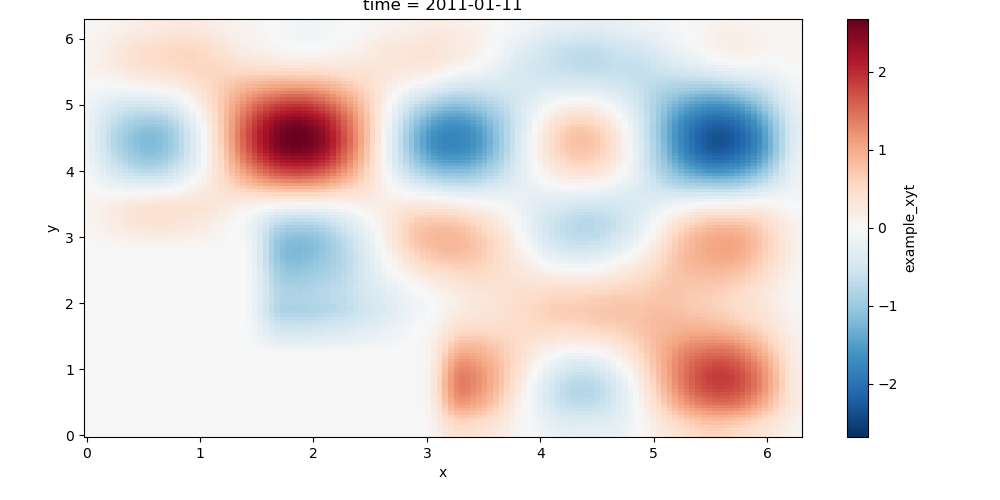

Without the use of boundary weights:

In [47]: res_raw = ws.convolve()

In [48]: res_raw.isel(time=10).plot()
Out[48]: <matplotlib.collections.QuadMesh at 0x7fef4434e410>

In [49]: plt.show()

With the use of boundary weights:

In [50]: res_weights = ws.convolve(weights=weights)

NameErrorTraceback (most recent call last)
<ipython-input-50-f94e265343e2> in <module>()
----> 1 res_weights = ws.convolve(weights=weights)

NameError: name 'weights' is not defined

In [51]: res_weights.isel(time=10).plot()

NameErrorTraceback (most recent call last)
<ipython-input-51-f80354627d4d> in <module>()
----> 1 res_weights.isel(time=10).plot()

NameError: name 'res_weights' is not defined

In [52]: plt.show()

Note

Once a filtering has been performed, the current DataArray the dask graph is destroyed and need to be created again using the xscale.Window.set() method.

Tapering

This functionality is not coded yet but it will be available soon.
